Axiomtek eBOX746-EFL Mini PC 1 GHZ NIEUW

---

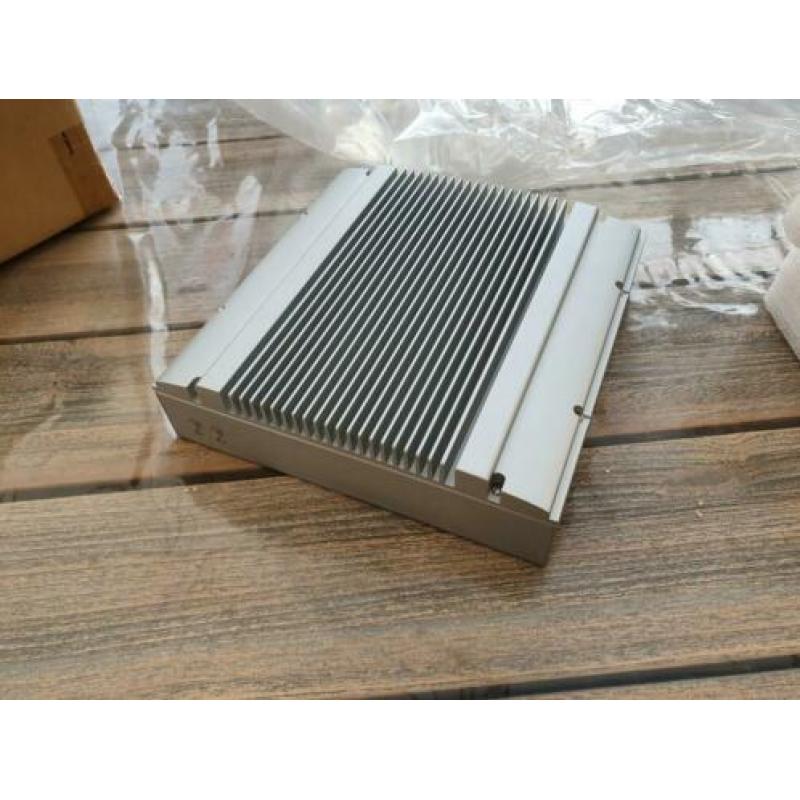

Axiomtek eBOX746-EFL, in degelijke alumium casing

eBOX746-EFL / Via Eden 1GHz / 256MB / 40GB

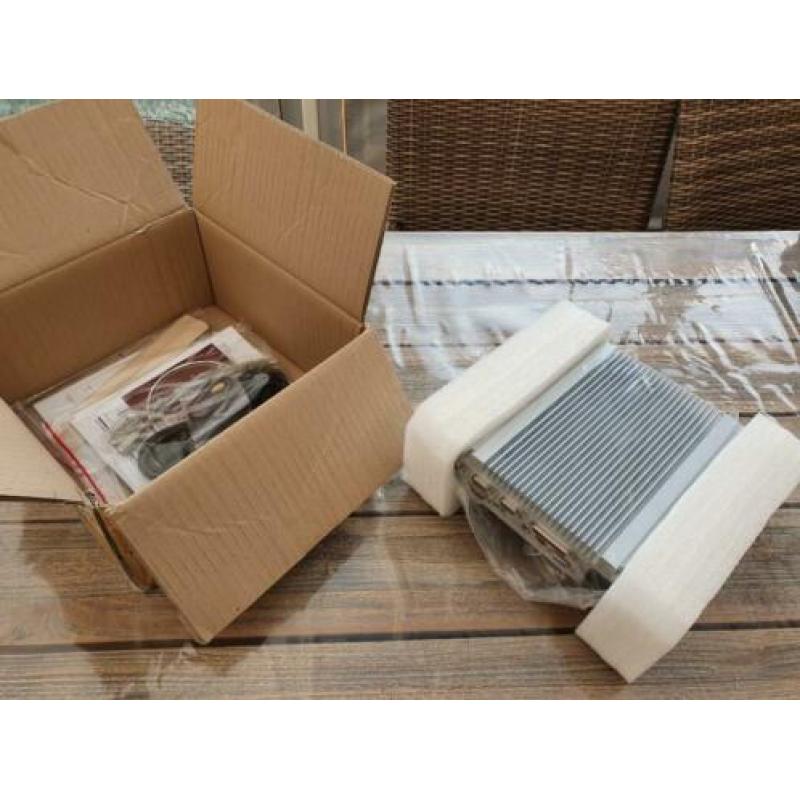

Nieuw in doos / doos wel open geweest

Meerdere exemplaren aanwezig

Spec\'s Internet

Fanless operation

Onboard ULP VIA Eden processor

High performance with extremely low power

Full feature I/O

Supports CompactFlash™ II

One 2.5\" HDD drive bay

Watchdog Timer

70 watt AC-in or DC-in power supply

Wall mount (DIN rail bracket optional)

Certification: CE
Construction: Aluminum die-casting and heavy-duty steel
Dimensions: 255mm x 225mm x 63mm (W x D x H)
EOS Support: XPE, WinCE, Linux
Extension: 1x 2.5\" HDD drive bay, 1x type II compact flash slot
Humidity: 10-90% RH (no condensation)
Input rating: 1. V AC100-240 universal/0.5Amp, 2. V DC 12V/8Amp, VDC 24V/4Amp., VDC48V/2Amp.
Operating temperature: -25°C to 50°C (HDD or CF)
Output rating: 70 watt,
Output voltage: +5VDC @10A, +12V DC @1.2A, -12V DC @0.3A
Standard Color: Silver
Storage temperature: -25°C ~ +80°C
System Board: SBC84600VE-400/667/1G(VIA Eden CPU)

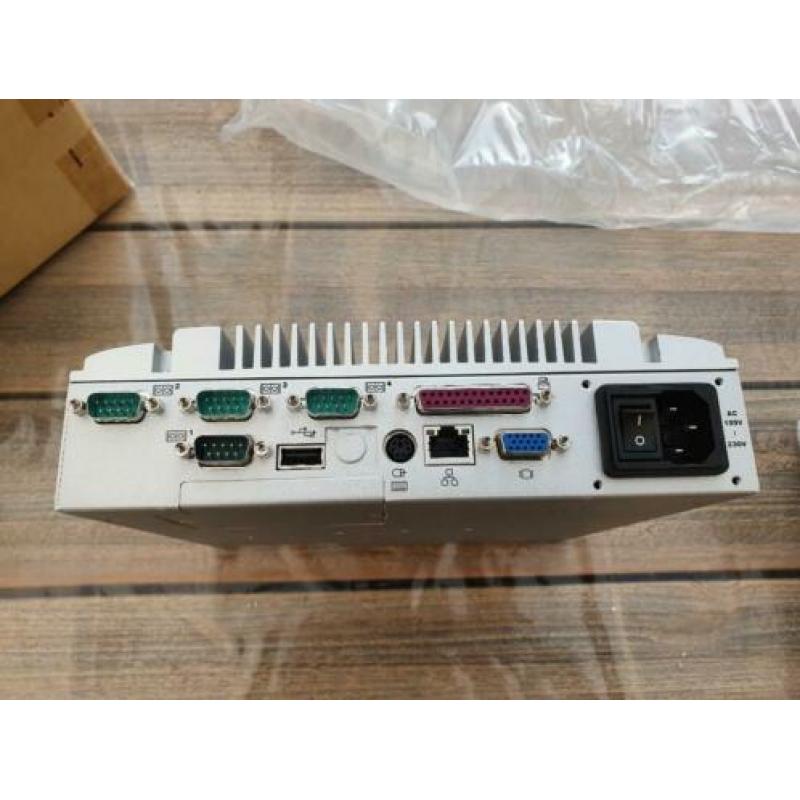

System I/O: Outlet 3x 9-pin D-Sub Male connector, COM1, 3, 4 for RS232, 1x 9-pin D-Sub Male connector, COM2 for RS485/422/232, 1x 15-pin D-Sub female connector for VGA, 1x PS/2 connector for K/B and M/S through Y-Type cable, 1x RJ45 connector for 10/100Base-T Ethernet, 1x USB connector, 1x 25-pin D-Sub Female connector for LPT, 1x Vac100-240 Power input connector
System Indicator: 1x green LED for system power-on, 1x yellow LED for HDD active
System Memory: 256MB SDRAM SODIMM (Option 512MB SODIMM)
Vibration endurance: 2Grms w/CF(5-500Hz, X, Y, Z directions) 0.5Grms w/HDD(5-500Hz, X, Y, Z directions)
Watchdog Timer: 0.5~1600 sec with 64 levels; system reset or NMI
Weight: 2.65kg ( w/o HDD)
